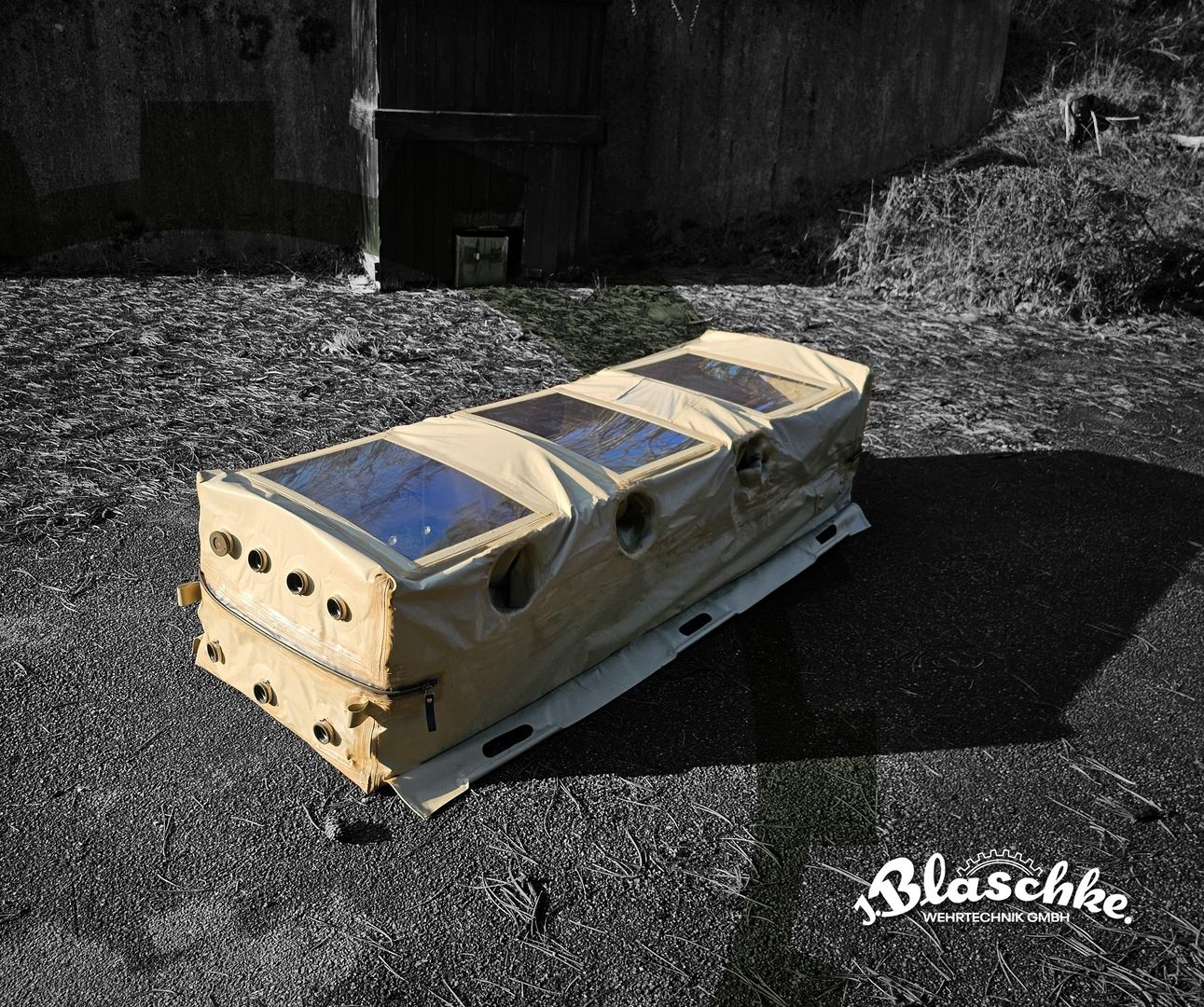

CASUALTY BAG VBS-93-K with NBC-VENTILATING EQUIPMENT SBV-93
for contaminated casualties
For transporting injured, contaminated persons through contaminated terrain or for protection in the event of an NBC alarm.
The air flow from the head to the feet protects the casualty as good as possible against the dangerous gases.
For a better result the casualty is to unclothe before placing him into the casualty bag.
The casualty bag must be opened only from full protected personal !
METHODEN OF CARRYING:
On a stretcher, with a body sheet, with carrying handles or with carrying roods.
NBC-VENTILATING EQUIPMENT:
3 filters, ventilation controlled with 2-stage switch, batteries and filters can be exchanged in contaminated terrain.
The bag is closed with a zip that can be opened in 2 directions to reach the wounded person.
The head covering part can be opened as shown below until there
is an NBC alarm.
| Technical data: | |
|---|---|
Material: | rubber coated fabric Re-time against chemical warfare agents (Mustard, Lewisite, VX and others) > 8 hours - easy to decontaminate |
| strength: | warp > 900 N / 5 cm woof > 900 N / 5 cm |
| weight: | 560 g / m² |
| Ventilating equipment: | |
|---|---|
| high output support | 250 l/min |
| low output support | 120 l/min |
| Power supply: | working time: |
| 5 disposable 1.5 V batteries | up to 8 hours |
| Variants: | |
|---|---|
With gastight zipper | |
Seems protected at the outer side as well as at the inner side with tape. Outlet of air through. | |
Standard NBC-Mask-Filters to protect the environment from warfare gases. | |
With and without carrying handles. | Up to 3 windows |
Fixation belts for the patient. | Fixation belts to a stretcher. |
Feed through for infusion, oxygen, stethoscope | |
Up to 6 insertion sleeves with gloves | |
Extended height for the use with vacuum mattress |
| Accessoires: | sizes: |
|---|---|
NBC gloves for insertion sleeves | |
Cotton under gloves | 9, 11 |
Vacuum mattress | with Carrying bag |
Special storage hook | |
UV-Protection cover | |
Storage and transport rack | for 10 units |
Carrying bag for casualty bag | |
NBC filters | |
Toolset for valves |
